Low Voltage AC Drives Applied In Circular Knitting Machine (textile)

1, Load feature
Circular Knitting Machine is widely used in the textile industry, it’s usually started by external signal, speed is
controlled by external analog signal.
The running speed is high, start torque is high, and also the system always needs fast stop.

2, Requests for AC Drive (VFD)
(1) Big output torque at low frequency.
(2) Fast response during start.
(3) Running smoothly during running.
(4) Stop smoothly and accurately, without reverse.

3, Onsite picture

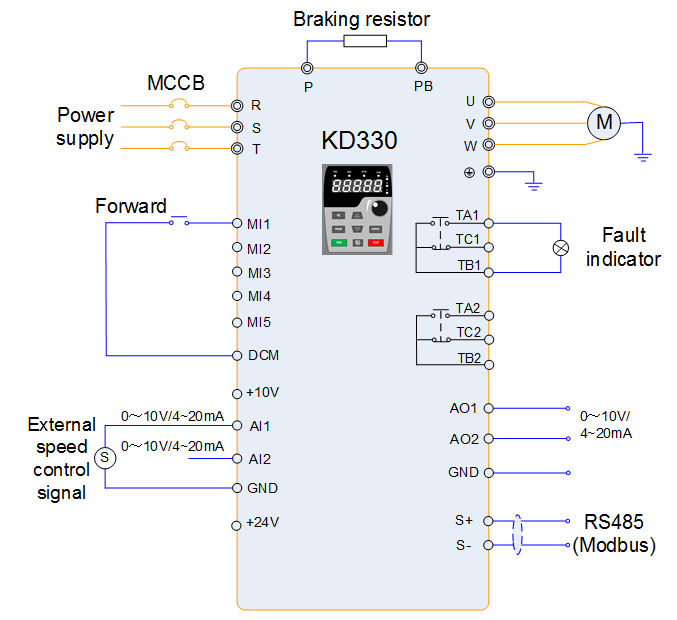

4, Typical wiring diagram

5, Parameters setting list

6, Notices
(1) Maintenance regularly, pay attention to ventilation, heat sink, and dust prevention.
(2) Before running the machine, remove the load and adjust the motor running direction to be correct.
(3) Pay special attention on the reversal while stopping, a slight reverse will cause damage to the dial, customer can change the S-curve mode or fine tuning the DC braking parameters to remove the reversal.
