Kinda 37KW Motor Frequency Converterapplied In Plastic Extruder

1, Load feature
There is a screw rotates in the tube body to push the plastic material move ahead, the screw type
will increase the pressure to overcome the big resistance.
Plastic extruder is constant torque load, it needs high output torque, and meantime the
temperature on the site is always high and dust will be more.

2, Requests for frequency inverters (VFD)
(1) Control is simple.
(2) Output high torque at low frequency..
(3) Heat sink performance of frequency inverter must be good.

3, Instruction for commissioning
(1) Pictures of plastice extruder

(2) Parameters setting list

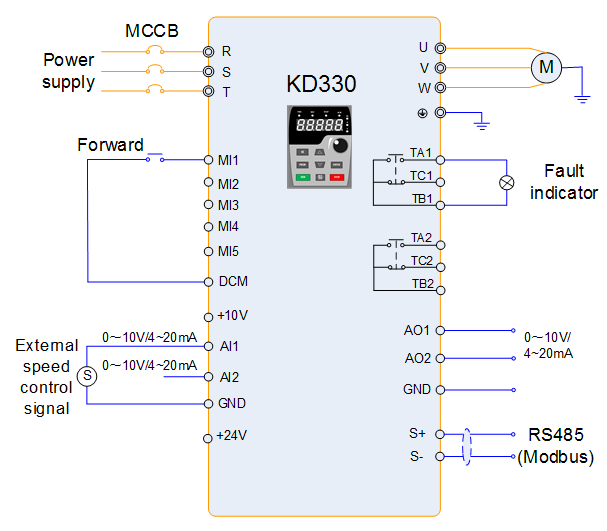

(3) Typical wiring diagram

4, Notices
(1) During commissioning, the motor running direction must be checked correctly.
(2) Before starting the motor, the system temperature must be ready, if the temperature is not
ready, the material inside the tube body will be blocked, it will cause high start current, the
failure of overload will happen.
(3) Maintenance regularly, pay attention to dust prevention and heat sink for frequency inverter.
