    Kinda Low Voltage AC Drives Energy Saving For Platic Film Blowing Machine

    Kinda Low Voltage AC Drives Applied In Platic Film Blowing Machine


    1, Load feature
    There are two parts on plastic film blowing machine can get energy saving:
    (1) Power driven system, most of this part will install an additional frequency inverter, which make the main motor works at30~40Hz to get energy saving;
    (2) Heating system, most of this part will install an electromagnetic heater to get energy saving.

    2, Requests for frequency inverters (VSD)
    (1) Output high torque at low frequency.
    (2) High speed control accuracy. (to avoid the raised grain occurs on the film).

    3, Instruction for commissioning
    (1) Pictures of plastic film blowing machine

    (2) Parameters setting list (take 15kW, 5.5kW motor as example)

    No.Function codesDefaultSetting valueExplanation
    1F0-0201Start / stop by external signal15kW main motor
    2F0-0311The motor speed is adjusted by keypad potentiometer.
    3F0-17Model depend15sAcceleration time (adjustable)
    4F0-10Model depend15sDeceleration time (adjustable)
    5F0-1202Torque boost (adjustable)

    1F0-0201Start / stop by external signal5.5kW motor
    2F0-0311The motor speed is adjusted by keypad potentiometer.
    3F1-17Model depend15sAcceleration time (adjustable)
    4F1-18Model depend15sDeceleration time (adjustable)

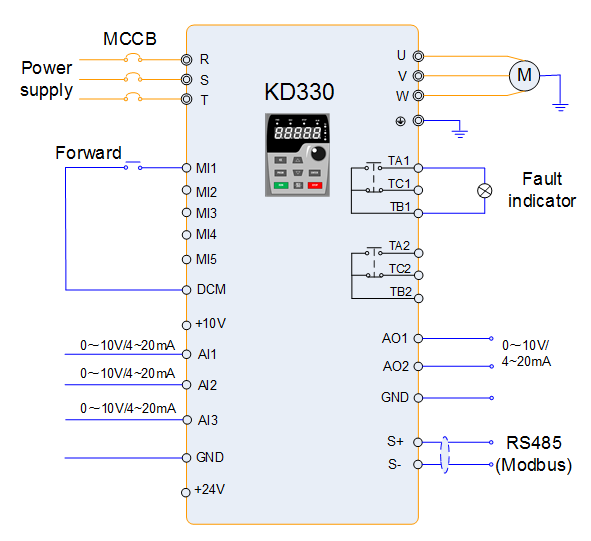

    (3) Typical wiring diagram

    4, Notices
    The temperature is always high on the site, pay attention to dust prevention and heat sink for frequency inverter.
